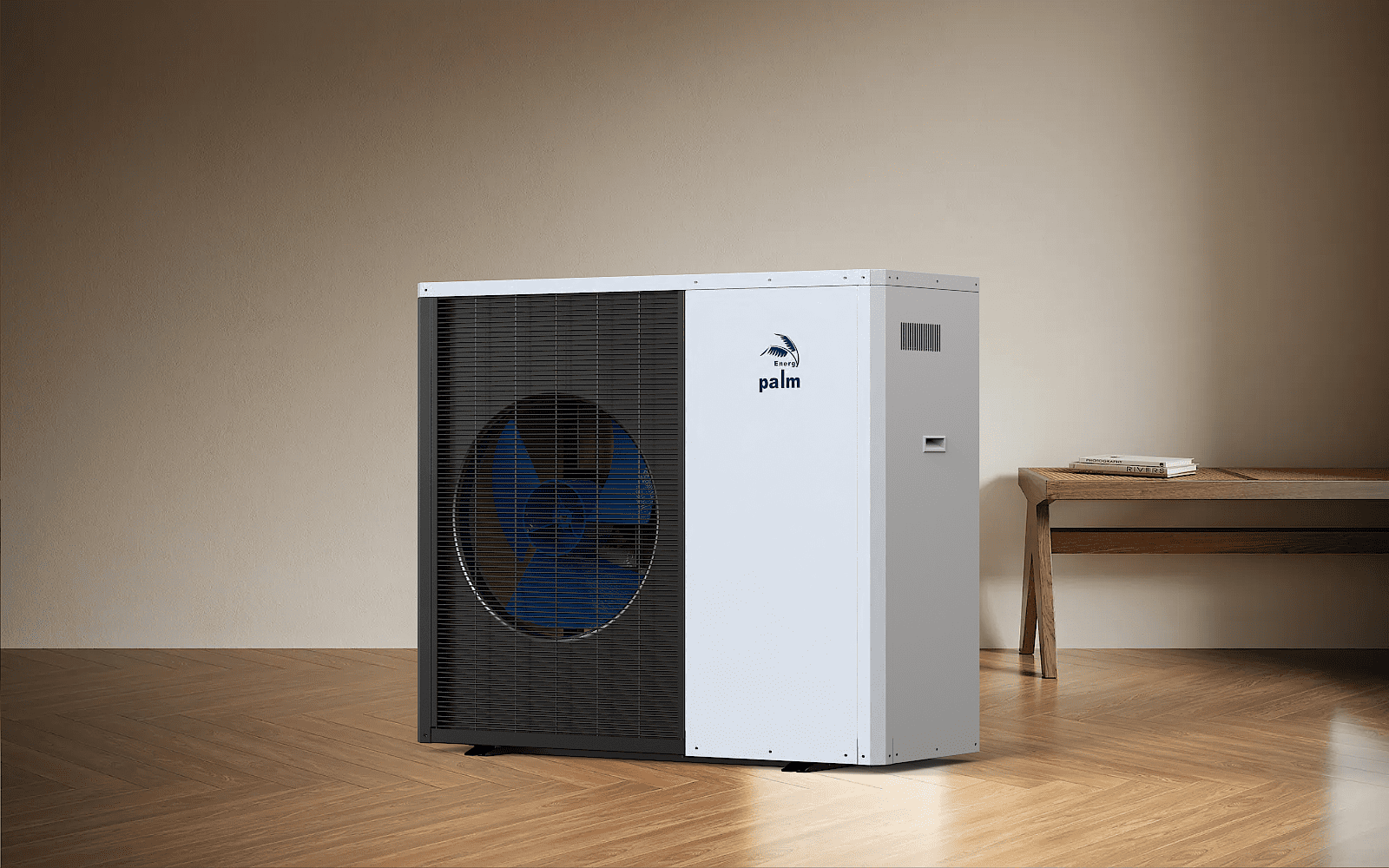

AH9DCR-R32-A
·High efficiency A+++ Level
Our R32 Air to Water Heat Pump is specially developed with the most cutting-edge heat pump technology and modern design to meet your requirements for efficiency, stability and quietness. Not only use R32 green gas and inverter EVI technology, but also be rated with A+++ energy label. With top energy rating A+++, the unit is currently most energy efficient and can greatly reduce energy bills for you.
·Low Noise design
Our heat pump utilizes R32 refrigerant, offering both environmental efficiency and exceptional user experience. Its low-noise system is meticulously engineered, operating at a minimal noise level of just 46 decibels, akin to the tranquility of a library. This ensures a peaceful and comfortable living environment, free from noise disturbances.
·Multi-language Control HMI
Our Multi-language Smart Control HMI offers powerful features and customizations with your logo. It tracks real-time data on capacity, input power, COP, and water flow, and monitors energy usage (daily, weekly, monthly, and annual). View detailed tables for 24-hour and hourly heating/cooling capacity and consumption, as well as annual histograms. The 4-section timing setting saves costs, with SG Ready function enabled and built-in Wi-Fi for easy connectivity.
·Full DC Inverter Technology
Our heat pump is equipped with top-tier components, meticulously designed and rigorously tested to ensure exceptional performance and long-lasting durability. The high-efficiency configuration not only enhances operational effectiveness but also significantly reduces energy consumption. Enjoy a comfortable temperature while contributing to environmental conservation, lowering energy costs, and embracing a greener lifestyle.
·Widely Operation Temp Range
Our heat pump is designed for stable operation in a wide temperature range, from -25°C to 43°C ambient temperature. It ensures reliable heating and cooling performance even in extreme weather conditions, making it suitable for diverse climates. With robust construction and advanced technology, the system maintains consistent efficiency and comfort, providing optimal performance year-round, regardless of the surrounding temperature. Ideal for both residential and commercial use in varying environmental conditions.
·5 Working Modes
Heating / Cooling / Domestic Hot Water / Heating+DHW / Cooling+DHW
| R32 DC inverter Air to Water Heat Pumps Specification | |||||||
|---|---|---|---|---|---|---|---|
| Models | AH6DCR-R32 | AH9DCR-R32 | AH12DCR-R32 | AH14DCR-R32 | AH16DCR-R32 | AH19DCR-R32 | |
| Electric supply | V/Hz | 230V/50-60Hz | |||||
| Heating condition: water inlet/outlet temperature: 35°C, Ambient temperature: 20°C; | |||||||
| Heating capacity | kW | 8.44 | 12.1 | 16.32 | 18.76 | 21.88 | 25.4 |
| Power input | kW | 1.41 | 2.02 | 2.77 | 3.47 | 3.66 | 4.5 |
| COP | W/W | 5.99 | 5.99 | 5.89 | 5.41 | 5.98 | 5.64 |
| Heating condition: water inlet/outlet temperature: 35°C, Ambient temperature: 7°C; | |||||||
| Heating capacity | kW | 6.21 | 8.9 | 12 | 13.9 | 16.3 | 18.936 |
| Power input | kW | 1.26 | 1.81 | 2.5 | 3.13 | 3.34 | 4.265 |
| COP | W/W | 4.93 | 4.92 | 4.8 | 4.44 | 4.88 | 4.44 |
| Heating condition: water inlet/outlet temperature: 45°C, Ambient temperature: 7°C; | |||||||
| Heating capacity | kW | 5.91 | 8.46 | 11.29 | 13.11 | 15.31 | 17.78 |
| Power input | kW | 1.48 | 2.12 | 3.08 | 3.67 | 3.88 | 4.75 |
| COP | W/W | 3.99 | 3.99 | 3.67 | 3.57 | 3.95 | 3.74 |
| Heating condition: water inlet/outlet temperature: 35°C, Ambient temperature: 2°C; | |||||||
| Heating capacity | kW | 5.56 | 7.97 | 10.8 | 12.42 | 14.49 | 16.8 |
| Power input | kW | 1.22 | 1.76 | 2.44 | 3.06 | 3.23 | 3.97 |
| COP | W/W | 4.56 | 4.53 | 4.43 | 4.06 | 4.49 | 4.23 |
| Heating condition: water inlet/outlet temperature: 45°C, Ambient temperature: 2°C; | |||||||
| Heating capacity | kW | 5.32 | 7.61 | 10.16 | 11.8 | 13.78 | 16 |
| Power input | kW | 1.45 | 2.07 | 3.01 | 3.6 | 3.8 | 4.65 |
| COP | W/W | 3.67 | 3.68 | 3.38 | 3.28 | 3.63 | 3.44 |
| Cooling condition: water inlet/outlet temperature: 18°C, Ambient temperature: 35°C; | |||||||
| Cooling capacity | kW | 6.1 | 8.1 | 11.2 | 11.3 | 15.6 | 16.6 |
| Power input | kW | 1.53 | 2.08 | 3.01 | 3.08 | 4.3 | 4.55 |
| COP | W/W | 3.99 | 3.89 | 3.72 | 3.67 | 3.63 | 3.65 |
| Cooling condition: water inlet/outlet temperature: 18°C, Ambient temperature: 35°C; | |||||||
| Cooling capacity | kW | 4.9 | 5.9 | 8.1 | 9.5 | 11.4 | 12 |
| Power input | kW | 1.65 | 2 | 2.83 | 3.7 | 4 | 4.2 |
| COP | W/W | 2.97 | 2.95 | 2.86 | 2.57 | 2.85 | 2.86 |
| SCOP | / | 4.65 | 4.65 | 4.69 | 4.69 | 4.55 | 4.55 |
| Compressor | / | Mitsubishi | |||||
| Max.current | A | 12.5 | 12.5 | 15 | 15 | 25 | 25 |
| Max.water temperature | °C | 60 | |||||
| Running temperature range | °C | -25 ~ 43 | |||||
| compressor(s) | / | Twin Rotary | |||||
| Refrigerant circuit | / | ||||||
| Heat exchange | / | Copper and Hydrophilic Aluminum Fin | |||||
| Air flow | m³/h | 2100 | 2400 | 2900 | 3100 | 5600 | 5600 |
| Heat exchanger | / | Plate heat exchanger | |||||
| Water circuit | / | ||||||
| In/Out pipe | / | DN25(1") | DN25(1") | DN25(1") | DN25(1") | DN32 | DN32 |
| Water flow | m³/h | ≥0.8 | ≥1.2 | ≥1.8 | ≥2.0 | ≥2.3 | ≥2.3 |
| permitted pressure | / | ≤0.8MPa | |||||
| Net weight | kg | 90 | 90 | 105 | 110 | 140 | 140 |
| Gross weight | kg | 102 | 102 | 115 | 120 | 150 | 150 |
| Unit dimensions(W*H*D) | mm | 1115*710*425 | 1115*710*425 | 1115*960*425 | 1115*960*425 | 1115*1280*425 | 1115*1280*425 |
| Package dimensions(W*H*D) | mm | 1160*860*520 | 1160*860*520 | 1160*1110*520 | 1160*1110*520 | 1160*1440*520 | 1160*1440*520 |
| Noise level | dB(A) | 46 | 46 | 50 | 50 | 52 | 52 |
| Loading quantity for 20'/40" | / | 44/88 | 22/44 | ||||
| The above model is optional for multifunction (Room heating, cooling and domestic hot water in one solution) with extra cost of USD100. | |||||||
